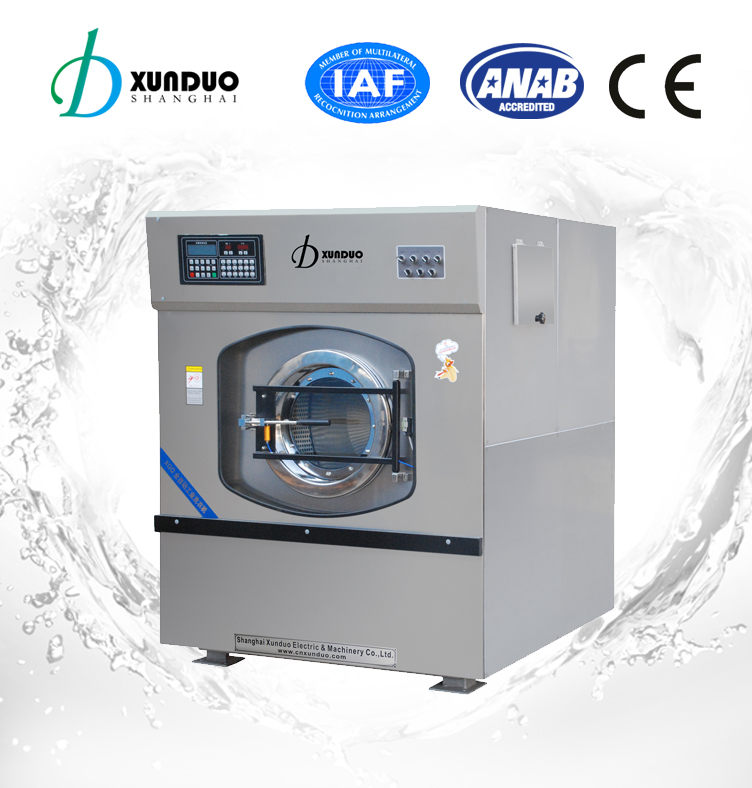

Fully automatic washer extractor is with both washing
and extracting function, electric or steam heated, can
make 50 or more programmes.ISO and CE aprroved.
Previous : None
Next : washer extractor
Function: Washing and Extracting

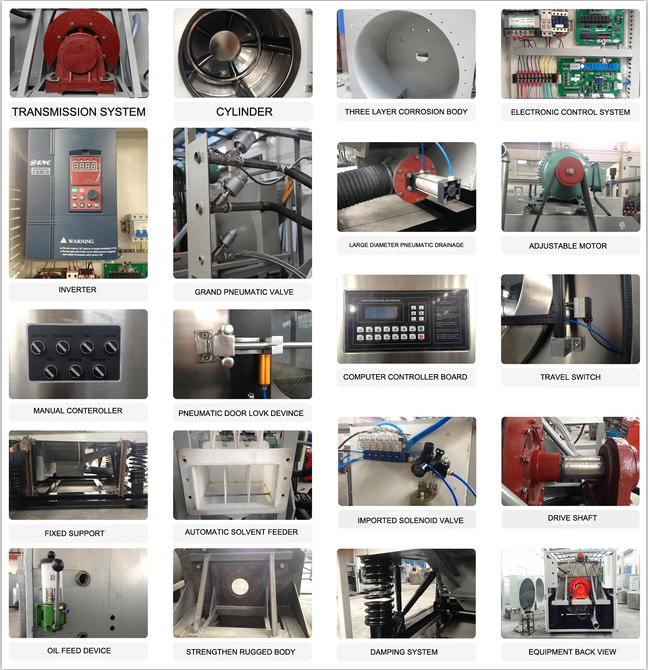

1. Body and drum are of high grade stainless steel.
2. Tight and stable structure with minimum shake.
3. Computer controller with self diagnostic system.
4. Blue LCD widescreen display for intelligentized operation.
5. Frequency controlled motor for perfect control of the drum.
6. Anti-vibration with excellent shock absobers and big spring.
7. Wide range selection of programmes washing cycle, almost 25 programmes.
8. The sealed industrial bearing for a long lifespan and less wear.
9. Large Drain Valves ensure a very fast draining and a shorter cycle.
10. Large door with long handle, safe and easy operation.
11. Automatic oil feeding systems for transmission bearing systems.
12. The aerodynamic design of soap inject system.
13. Energy and water saving systems.
14. Heating: Electrical,Steam.
15. Water: Hot or cool water.
16.It's widely used in hospital, restaurant,school amd hotel laundry.
|
Washing Capacity |
30kg |
50kg |
70kg |
100kg |
|
Model |
XGQ-30F |
XGQ-50F |
XGQ-70F |
XGQ-100F |
|
Washing Capacity(kg) |
20-30 |
40-50 |
55-70 |
80-100 |
|
Rolling Container Dimension(mm) |
Φ880×560 |
Φ990×670 |
Φ1200×650 |
Φ1200×850 |
|
Rolling Container Speed (wash/middle extract/ high extract)(r/min) |
36/400/760 |
36/370/700 |
34/300/670 |
32/300/670 |
|
Rated Voltage(V) |
380 |
380 |
380 |
380 |
|
Motor Power(kw) |
4 |
5.5 |
7.5 |
7.5 |
|
Frequency Converter |
5.5 |
7.5 |
11 |
11 |
|
Diameter of Hot Water Pipe(lnch) |
1 |
1 1/4 |
1 1/2 |
2 |
|
Steam lnlet(lnch) |
1 |
1 |
1 |
1 |
|
Diameter of Cold Water Pipe(lnch) |
1 |
1 1/4 |
1 1/2 |
2 |
|
Steam Pressure(Mpa) |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
|
Consumes Proportion of Steam(kg/kg) |
0.9 |
0.9 |
0.9 |
0.9 |
|
Air Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Dimension(mm) |
1400×1380×1720 |
1500×1550×1760 |
1800×1760×2210 |
1850×1950×2250 |
|
Total Weight(kg) |
1200 |
2000 |
3000 |
3500 |
