Horizontal structure, stable running, low noise.
Body and drum is made of high grade stainless steel with smooth surface.
Equipped with fluorine rubber seal system on the both end of spindle to improve the abrasion resistance and prevent leakage.
2 years warranty period, professional after-sales service
Previous : None

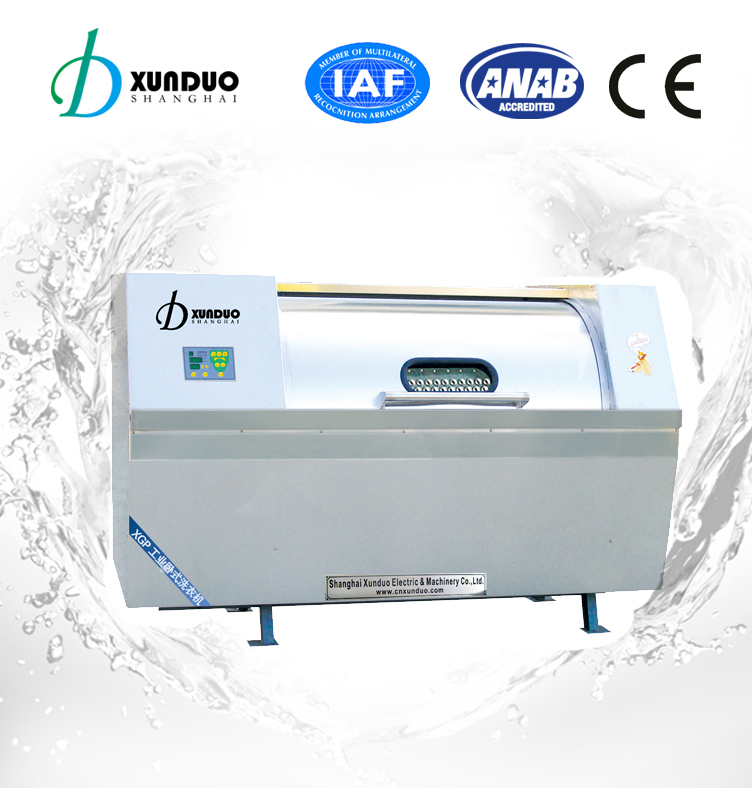

XGP Series Horizontal Washing Machine
1. Function: For industrial washing only
2. Semi-automatic, micro-computer controller.
3. Horizontal structure, stable running, low noise.
4. Body and drum is made of high grade stainless steel with smooth surface.
5. Equipped with fluorine rubber seal system on the both end of spindle to improve the abrasion resistance and prevent leakage.
6. Equipped with safety lock on both of inside and outside door for safety operation.
7. Simple operation and easy maintainance.
8.It's widely used in hospital, restaurant,school amd hotel laundry.
Feature:
1. Small type of horizontal washer, flexible and nice appearance
2. Capacity range from 35-100kg, economic-saving cost
3. Wide range of washing type. Can washing with stone and sand.
4. Suited for middle commercial washing, special suited for jean washing.
Technical Specification:
Washing Capacity | 35kg | 50kg | 70kg | 100kg |
Model | XGP-35W | XGP-50W | XGP-70W | XGP-100W |
Washing Capacity(kg) | 35 | 50 | 70 | 100 |
Rolling Container Dimension(mm) | Φ720×930 | Φ830×1000 | Φ970×1000 | Φ970×1400 |
Inlet water pipe(inch) | 1.5 | 1.5 | 2 | 2 |
Out water pipe(inch) | 2 | 2 | 3 | 3 |
Inlet steam pipe(inch) | 0.75 | 1 | 1.5 | 3 |
Steam Pressure(Mpa) | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 | 0.3--0.6 |
Motor Rated Power(kw) | 1.1 | 1.5 | 1.5 | 3 |
Rated Voltage(V) | 380 | 380 | 380 | 380 |
Dimesion LxWxH (mm) | 1900x950x1150 | 1900x1050x1200 | 1900x1500x1400 | 2300x1500x1400 |
Total Weight(kg) | 450 | 520 | 800 | 900 |
