Folding machine choose imorted Schneider,
Siemens electrical components. With independent
and energy-saving motor.Adopts motor drive instead
of clutch drive.ISO and CE aprroved.
2 years warranty period, professional after-sales service
Previous : Flatwork Ironer
Next : Tumble Dryer

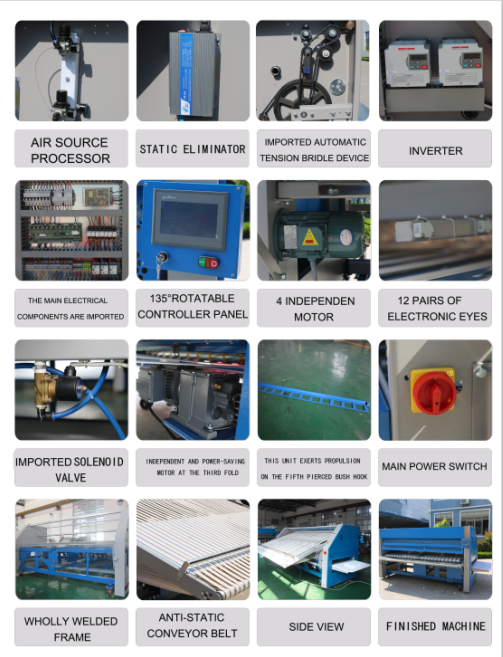

1. 1.2.3.or 4 lane with 2-3cross folding is avilable
2. Computer control with display touch screen,
3. Automatic lane selection by size of linen
4. Automatically select correct number of primary folds and cross folds by linen size
5. Frequency inverter drive with soft start to reduce stress on drive components.
6. START/STOP button pause and restart operation without interrupting folding in progress.
7. Heavy-duty motor with overloading protection.
8. Heavy duty Belt and chain drive.
9. Excellent powered static eliminator bar
10. Individual air pressure regulators with gauge and auto-drain feature.
11. Full safety guard, interlock and stop buttons
Feature:
1. A multi-purpose folder with excellent folding quality
2. Fast running and mechanically stable.
3. Precise folding and lower noise
|
Model |
ZD3000-V |
|
Max Folding LxW(mm) |
3000x3000 |
|
Max NO. of Folds(times) |
1-5 |
|
Folding Speed(m/min) |
10-50 |
|
Air Pressure(Mpa) |
0.7 |
|
Compressed air(m3/min) |
0.2 |
|
Rated Input Power(kw) |
1.3 |
|
Dimension(mm) |
4200x2800x1760 |
|
Total Weight(kg) |
1600 |
